| Type | XLB-D/Q400x400x2E | XLB-D/Q600x600x2D | XLB-D/Q600x600x2 | XLB-D/Q450x450/600x2 | XLB-D/Q750x850x2 |
| Nominal clamp mould force(mm) | 0.5 | 1 | 1.6 | 1.6 | 1.6 |
| Specification of hot plate(mm) | 400x400 | 600x600 | 600x600 | 450x450/600 | 750x850 |
| Number of working layer(layer) | 2 | 2 | 2 | 2 | 2 |
| Piston diameter(mm) | φ200 | φ300 | φ360 | φ360 | φ360 |
| Max.stroke of piston(mm) | 250 | 300 | 450 | 450 | 500 |
| Distance between hot plate(mm) | 125 | 150 | 250 | 250 | 250 |
| Unit area pressure of hot plate(mpa) | 3.1 | 2.78 | 4.44 | 7.9/5.9 | 2.5 |
| Motor power(kw) | 1.5 | 2.2 | 2.2 | 2.2 | 3 |
| Weight(kg) | 1300 | 2600 | 2800 | 2550/2600 | 5000 |
| Overall sizeLxWxH(mm) | 1500x750x1500 | 2000x700x1700 | 2000x700x1700 | 1800x550x2100 2000x550x2100 | 2550x960x2100 |
| Close mould speed (mm/s) | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |
| Open mould speed (mm/s) | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 |

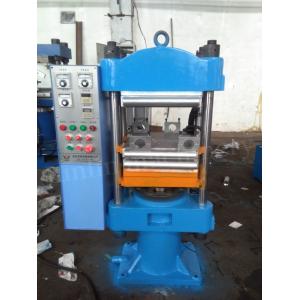

The column type rubber vulcanizing press is a rubber vulcanizing press mainly used in the rubber and tire manufacturing industry to press various common small-sized rubber mold products and thermosetting and thermoplastic plastic mold products. It vulcanizes rubber compounds through chemical reactions to cross-link the polymer chains in the material, thereby improving mechanical properties such as strength, elasticity and durability.
It has automatic pressure topping-up. You can adjust the vulcanizing pressure and the curing time.
Its good points are: compact design, high production efficiency, safe and reliable operation, and it makes sure the product quality is good. Depending on what the customer wants, it can work with manual control or electric control.
