Qingdao Junlin Machinery Co., Ltd.
Qingdao Junlin Machinery Co., Ltd. is a professional rubber equipment manufacturer with advanced precision machining centers for high-accuracy custom processing. ISO 9001/CE/ASME certified, we deliver
Add to Cart
| model | YLL-8/4000 | YLL-5/6000 | YLL-4/8000 | YLL-3/10000 | YLL-1/30000 |
| clamping force(kn) | 4000 | 6000 | 8000 | 10000 | 30000 |
| Hydraulic system pressure(mpa) | 20 | 16 | 16 | 17 | 17 |
| Piston diameter(mm) | φ500 | φ710 | φ800 | φ870 | φ1500 |
| Hot plate area(m㎡) | 750×750 | 975×975 | 1250×1250 | 1600×1600 | 2060×2060 |

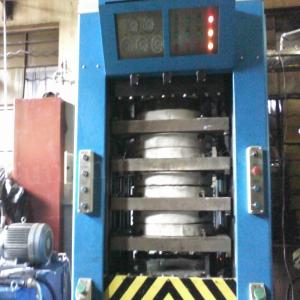

Solid tire vulcanizer is a key equipment specially used for producing solid tires. Through high temperature and high pressure vulcanization process, rubber and tire body (such as steel ring, fiber reinforcement layer) are closely combined to form a highly wear-resistant, pressure-resistant and air-free tire.
Mainly for vulcanizing solid tires of all sizes.
It can also work as a regular hydraulic press for other pressing jobs.
Integrates all essential processes for rubber vulcanization:
Pre-heating
Automatic air venting after material loading
Pressure-holding vulcanization
Timed alarm notification
Automatic mold opening
Finished product ejection
Adopts PLC (Programmable Logic Controller) or manual operation (customizable according to user requirements).
